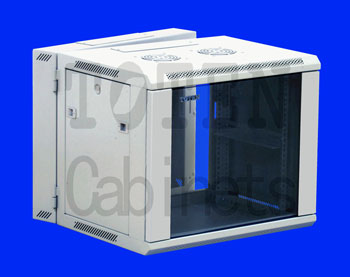

ZH Wall-Mounted Cabinets

Standards:

●Comply with ANSI/EIA RS-310-D、IEC297-2、DIN41494;PART1、DIN41494;PART7, ETSI standard.

Feautures:

●Double section welded frame structure;

●Easy operation and maintaining at the back;

●19” standard installation;

●Removable side panels, side locks are optional, easy installing and maintaining;

●Cable entry at the top cover and bottom panel;

●120mm fan optional;

●Turning angle of front door is above 180 degrees;

●Turning angle of rear door is above 90 degrees;

Main material:

●SPCC cold rolled steel;

●Thickness：mounting profile 2.0mm, mounting angle 1.5mm, others 1.2mm.

Surface finish:

●Degreasing, pickling, phosphoric, powder coated;

Degree of protection:

●IP20

Loading capacity:

●Static loading: 60KG
