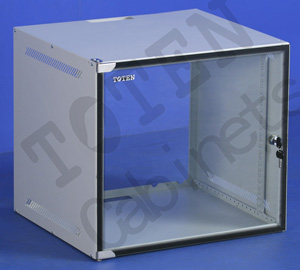

WS Wall-Mounted Cabinets

Standards:

●Comply with ANSI/EIA RS-310-D、IEC297-2、DIN41494;PART1、DIN41494;PART7, ETSI standard.

Feautures:

●Front door , made of glass , with silk-screened flower pattern;

●Wall mounting installation;

●Easy mounting installation（patent）;

●10” or 19” standard installation;

●Accessory parts are installed in the cabinet according to demand;

●Cable entry on both of top cover and bottom panel;

●Turning angle of front door is over 180 degrees.

Main material:

●SPCC cold rolled steel;

●Thickness：Mounting profile: 1.5mm, others: 0.8mm.

Surface finish:

●Degreasing, pickling, phosphoric, powder coated;

Degree of protection:

●IP20

Loading capacity:

●Static loading: 30KG
