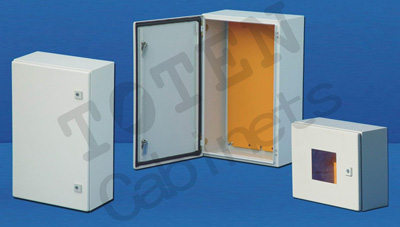

CB Compact Enclosures

Feautures:

●Multi-folded periphery of the enclosure to avoid water and sundries entering into the inner enclosure;

●Cold rolled steel welded frame with strong structure;

●All-round polyurethane gasket in the door with good protection;

●Molded door border with exquisite image and strong intensity;

●Door can be open from left or right;

●Door can be turned to 110 degrees with hinge, and 180 degrees with special hinge;

●Adjustable mounting panel;

●M8 earth pole is mounted on the body, door and the mounting panel;

●Mounting hole drilled at the back of the enclosure, no need extra holes .

Hotline: (028) 6287 1568 Contact

Main material:

●SPCC cold rolled steel;

●Thickness: mounting panel: 2.5MM; others: 1.5mm.

Surface finish:

●Body of enclosure and doors:

Degreasing, pickling, phosphoric, electrophoretic dip-coated printed, static power with textured stove enamel RAL7032;

●Mounting plate ( SPCC cold rolled steel):

Degreasing, pickling, phosphoric, electrophoretic dip-coated printed, static powdered with flat coating RAL2000..

Degree of protection:

●Comply with IEC60529, EN60529/10.91 and GB4208-93 standard;

●Small size enclosure with IP66 ( width and height less than 400mm);.

●Width and height over 400mm enclosure with IP55.
