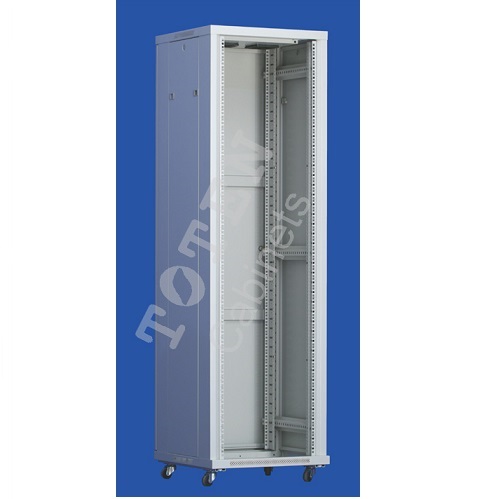

BV Broadcast Cabinets

Standards:

●Comply with ANSI/EIA RS-310-D、IEC297-2、DIN41491；PART1、DIN41494；PART7、GB/T3047.2-92、ETSI standard.

Feautures:

●Exquisite design with precise craftsmanship;

●Heavy-duty castor and adjustable feet are available at the same time;

●Optional plinth enables cabinet to stay in a fixed position, meeting requirements of under-base cable entry/ventilation and prevention;

●Adjustable under-base cable entry to meet various requirements;

●Removeable side panels, easy to install and maintain.;

●Flat pack is optional to reduce the shipment cost , easy to assembly;

●19″ standard installation, 800mm width cabinet with vertical cable manager to realize various installation;

●Accessories with common use.

Main material:

●SPCC cold rolled steel;

●Thickness: Mounting profile:2.0mm,door panel:0.8mm, others:1.2mm.

Surface finish:

●Degreasing, pickling, phosphoric, dip-coat primed, powder coated.

Loading capacity:

●Static loading: 500KG.
