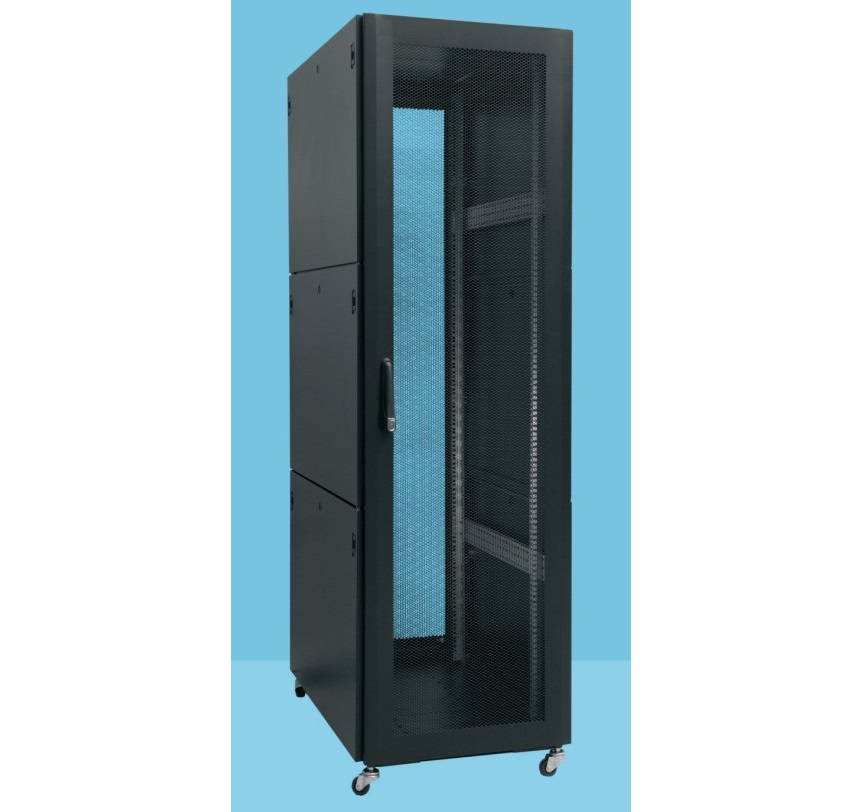

K3 Server Cabinet

Feature:

– Noble and elegant appearance,exquisite workmanship,precision size;

– The frame is made of nine folds structure and welded by Special ground nut with high strength;

– 19″standard installation,depth installation with adjustable dimension;height in U for unit with adjustable to meet client installation requirements;

– High density flat hexagonal mesh front door,double open flat hexagonal mesh back door,front and back door with advanced spring lock;with turning angle above 120 degrees;

– Ventilation rate above 71% to meet the need of ventilation and heat dissipation;

– Pre-punched holes for cabling at top .three section Cable entry on bottom panel with adjustable size;

– Three section quickly open side door,every section can be opened seperatly;

– 487mm wide installation space to make more equipment installation realized;



Loading capacity:

Static loading:1000KG ;

Static loading:1600KG(optional 2 auxiliary mounting profiles) ;



Degree of protection:

IP20;



Surface finish:

Degreasing,phosphoric,silane,powder coated;



Optional:

Fixed shelf,fan unit,pdu,cable management, keyboard tray,blank panel;
