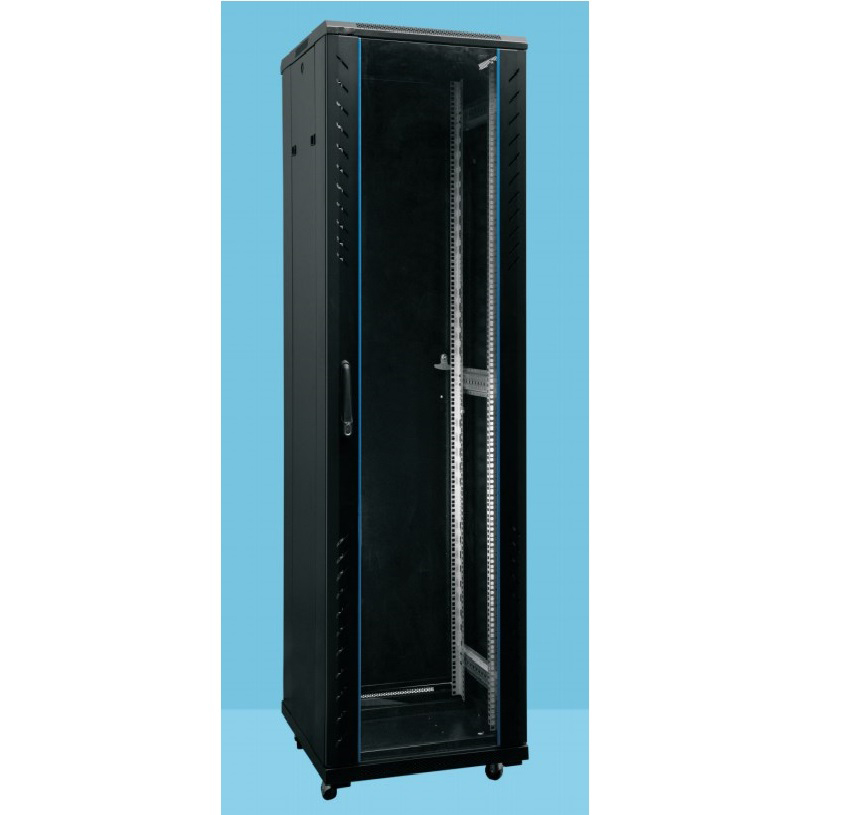

G2 Network Cabinet

Feature:

– Toughened glass front door with advanced and elegant lock,steel rear door with advanced and elegant lock;

– 19″standard installation, achieve the international standard for the installation of the versatility of the parts, door interchangeability;

– Ladder-shaped mounting angles,making products more conformity with mechanics principle,and the products loading capacity is much higher;

– The installing hole in mounting profile is from long strip to round.then eliminating the adjustment error and improving the installing precision

– Coated aluminum zinc material,when the equipment is installed automatically equipotential;

– Assembled frame structure, assembled and disassembled shippment,Maximize save shipping costs;

– 487mm wide installation space to make more equipment installation realized;

– Several lockable cable entry on top cover and bottom panel.Front rear door and side panel easy to install and remove .Bottom ventilation and rat proof.



Loading capacity:

Static loading:800KG ;



Degree of protection:

IP20;



Surface finish:

Degreasing,phosphoric,silane,powder coated;



Optional:

Fixed shelf,fan unit,pdu,cable management, keyboard tray,blank panel;
